Bariatric Bed Sizes and Weight Limits: Widths, Capacity Margins, and Room Fit

Choosing a bariatric bed means getting two things right at once: a weight rating with enough margin, and a size that fits the person, the room, and the route into the house. This page covers both. For choosing between models, see our main guide to bariatric hospital beds for home.

Bariatric bed sizes at a glance

Home bariatric beds are usually 42, 48, or 54 inches wide with an 80-inch sleep surface (some expand to 84 or 88 inches long), compared with 36 inches for a standard hospital bed. Published ratings in the examples below run from 600 to 1,150 lb safe working load.

Manufacturer-published sizes and ratings, checked October 9, 2026. SWL = safe working load. Confirm with the seller for the exact model and configuration.

Bariatric mattresses come in the same widths, and some go wider: Prius lists its MOXI Bari Select Air low air loss mattress in 42, 48, 54, and 60-inch widths, and Drive lists its Med-Aire Plus bariatric mattress from 42 to 60 inches. The mattress must match the bed deck exactly, so buy them as a matched pair.

Weight limit vs safe working load

The safe working load is everything the bed can carry, including the mattress, rails, and accessories; the maximum patient weight is the heaviest person it’s designed for, so it is always lower. Makers use different terms, and the difference matters:

• Safe working load is the total the bed is built to carry: the person, mattress, rails, trapeze, bedding, and anything else resting on it.
• Maximum patient weight is the heaviest person the bed is designed for. It’s lower than the safe working load because the mattress and accessories use part of the capacity.
• Evenly distributed means the rating assumes the weight is spread across the deck. Several makers warn against sitting or leaning with your whole weight on a raised head or foot section.

Drive’s bariatric manual gives the formula: allowance for mattress and accessories = safe working load − person’s weight. Invacare’s manual for its IVC Bariatric Bed is more direct: 600 lb maximum occupant, 700 lb maximum in total. Med-Mizer lists its ComfortWide CW1000 at 1,000 lb maximum patient weight and a 1,150 lb safe working load.

How much capacity margin to leave

There is no official rule. Add up the person’s weight plus the mattress, rails, and accessories, then leave room for weight change and uneven loading; if the total is close to the rating, choose the next rating up. A few practical points help:

1. Add up everything that will be on the bed. Ask the seller for the weight of the mattress (powered air systems are heavier than foam), rails, trapeze, and any overlay.
2. Allow for weight change. If the person’s weight could rise, choose the next rating up.
3. Allow for how the bed is used. If the person often sits on the edge, or leans on a raised section, the load isn’t evenly distributed. Follow the maker’s instructions.
4. Check the mattress rating separately. A 1,000 lb bed with a mattress rated for 600 lb is a 600 lb system.

Worked example. A person weighs 480 lb. A bed with a 600 lb safe working load leaves 120 lb for the mattress, rails, and any accessories. That may be enough with a foam mattress and half rails, but tight with a powered air mattress and a trapeze. A 750 lb bed leaves 270 lb and more room for change. Check the actual weights before you decide.

Medicare’s weight categories

Medicare has two heavy-duty categories, defined by the person’s weight rather than the bed’s width: more than 350 lb up to 600 lb, and more than 600 lb.

Medicare defines heavy-duty beds by weight, not by width (CMS policy article A52508):

• Heavy duty extra wide: for a person weighing more than 350 lb but no more than 600 lb (codes E0301 and E0303).
• Extra heavy duty: for a person weighing more than 600 lb (codes E0302 and E0304).

Our Medicare guide explains when these are covered.

Will it fit in the room?

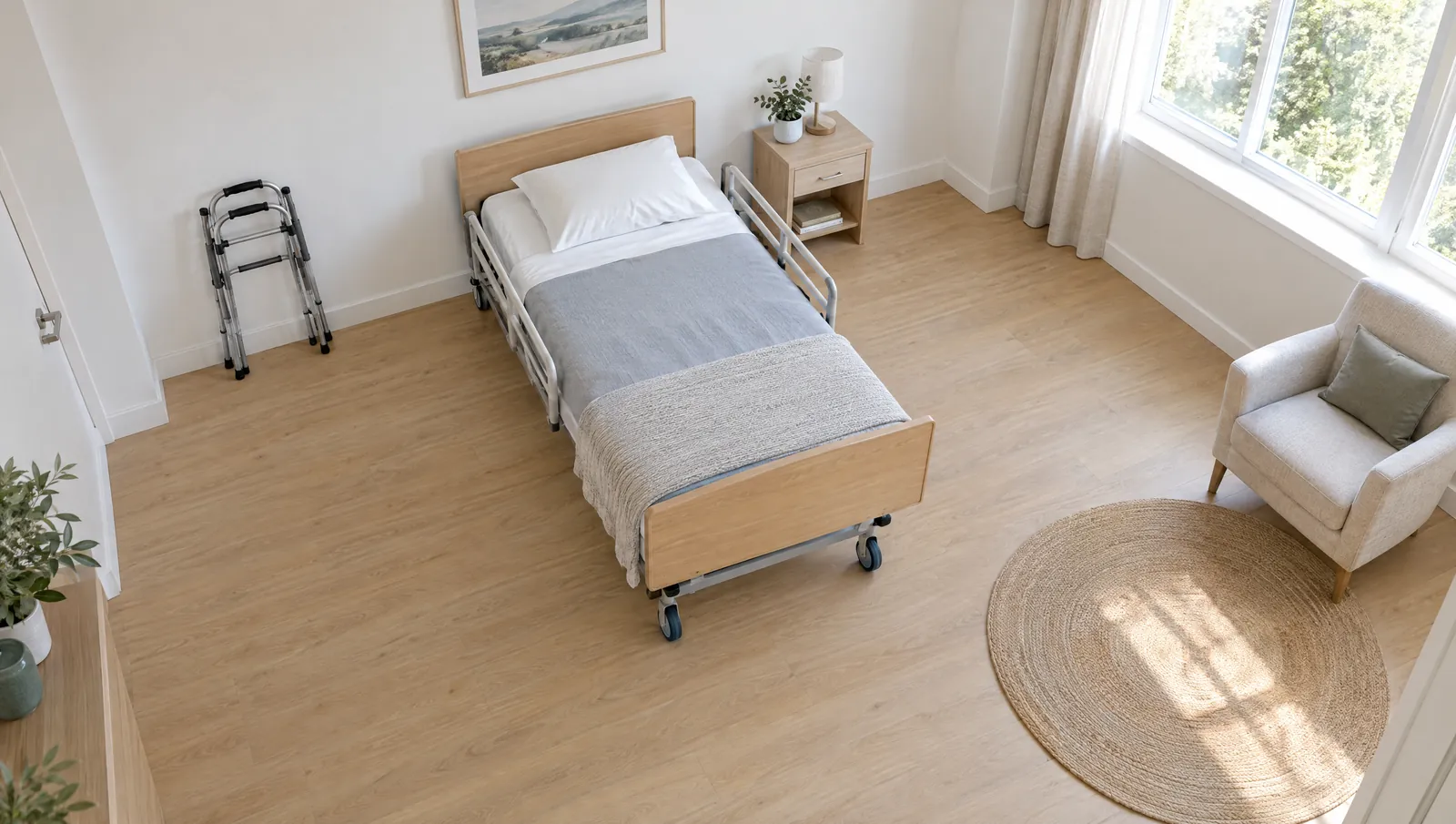

Plan around the outside width, including rails, not the mattress size, then add about 30 inches on each side used for care and 24 inches or more at the foot. A 48-inch bariatric bed reachable from both sides needs a room about 9 feet 2 inches wide. In detail:

• Each side used for care or transfers: about 30 inches gives room for a wheelchair or a caregiver. The 2010 ADA Standards, written for health care facilities rather than homes, call for at least 30 × 48 inches of clear floor space beside a patient bed (U.S. Access Board).
• At the foot: 24 inches or more for walking past.
• For a patient lift: check that the lift’s base fits under the bed. Under-bed clearance varies by model and height setting.

Example: a 48-inch bed that measures about 49.4 inches with rails, reachable from both sides with 30 inches each, needs about 110 inches (9 feet 2 inches) of width. At about 88 inches long plus 24 inches at the foot, it needs about 112 inches (9 feet 4 inches) of length. Use our room and doorway fit checker to try your own numbers.

Will it fit through the door and up the stairs?

Usually, yes: most clinical bariatric beds arrive in sections and are assembled in the room. Measure every door, hallway turn, and stairway on the route, and ask the seller for the size and weight of the largest piece.

Most clinical bariatric beds arrive in sections and are assembled in the room, so the question is the size and weight of the largest piece, not the assembled bed.

1. Measure the clear opening of each door on the route, with the door open 90 degrees, from the face of the door to the stop opposite.
2. Measure hallway turns and stairways, including the ceiling height over stairs.
3. Ask the seller for the number of pieces, the size of the largest one, and the total weight. The Prius Ai1’s user manual, for example, lists a bed weight of 466 lb.
4. Ask what delivery includes: carrying it in, stairs, assembly, and removing packaging.

Expanding beds such as the Prius Ai1 measure about 39.7 inches wide overall at their narrowest setting, according to the manual, which can help when a room is tight.

Rails, mattresses, and gaps

A wider bed still has entrapment risk, so use rails and a mattress made for the bed and check for gaps, especially with an air mattress.

A wider bed doesn’t remove the risk of entrapment. The FDA advises that the bed frame, rails, and mattress should leave no gap wide enough to trap a person’s head or body, and warns that gaps can form when a mattress compresses or when a specialty air mattress is used (FDA). On an expanding bed, set the mattress, rails, and any gap-filler to the same width and length. The FDA’s entrapment guidance applies to beds used in private homes as well as facilities.

Size and capacity checklist for the seller

1. Sleep-surface width and length, and the outside width with rails and overall length
2. Safe working load and maximum patient weight
3. Weight of the mattress, rails, and accessories you’re buying
4. Lowest and highest deck heights, and the top-of-mattress heights
5. Under-bed clearance (for a patient lift)
6. Number, size, and weight of the pieces on delivery
7. Matching mattress and sheet sizes

Compare bariatric bed sizes and prices (opens in a new tab)Paid link · Retailer shares ownership with this site

Next: compare models in our bariatric bed guide, see standard hospital bed dimensions, or request a quote for a specific width and weight rating.

How we researched this guide

Sizes and ratings come from makers’ product pages, spec sheets, and manuals (Drive, Invacare, Prius Healthcare, Med-Mizer, Transfer Master), checked October 9, 2026. Medicare categories come from CMS policy article A52508, room benchmarks from the 2010 ADA Standards, and safety notes from the FDA. We did not measure these beds ourselves. See how we evaluate beds.
